Form Roll Dies / Form Plates

Form rolling dies and form plates can be used to produce numerous shapes on thread rolling machines, such as components with grooves; slots; conical points; domed- and pointed-ends; combined grooves and conical points; curves; chamfers; and dog-points.

Utilizing state-of-the-art CNC technology, Hi-Life Tools designs and manufactures form rolling dies and form plates for all machine types and sizes - to yield standard and special threads.

Form Rolling Examples: Model to Finished Product

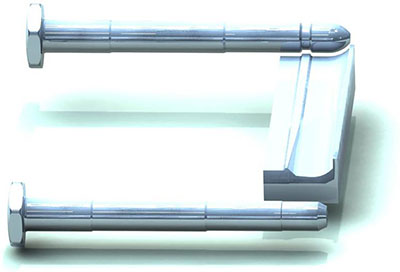

Form Rolling Model to Finish

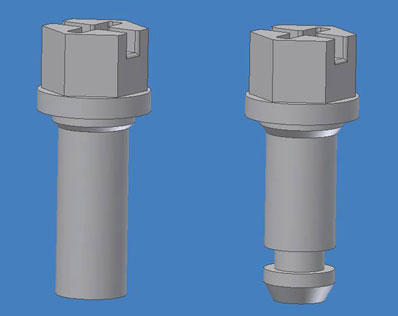

Form Roll

HI-LIFE Form Roll Dies / Form Plates Advantages

  • Eliminate expensive secondary machining operations
  • Produce stronger parts
  • Significantly decrease per-piece costs
  • Increase overall productivity
